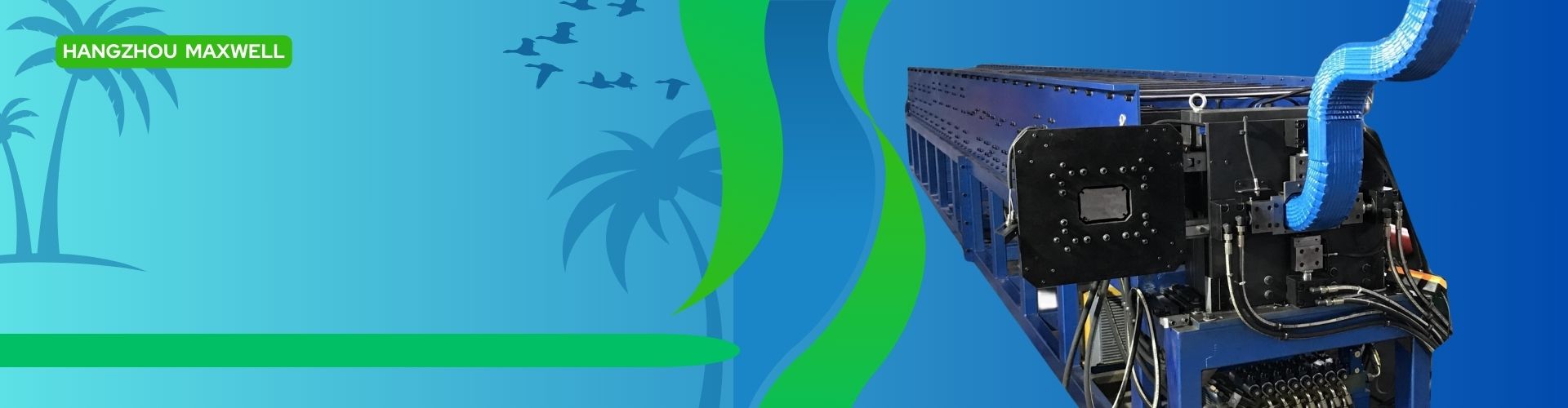

LSG153*105 Fully Automatic Square Downspout Machine
LSG153*105 automatic drop pipe machine adopts PLC automatic control mode, which can be automatically fixed length cutting, fixed arc bending according to the input length, quantity, arc size, and other parameters, and manual shrinking.
The production line is composed of a charging frame, feed guide device, roll forming device, cutting device, bending device, shrinking device, finished product bracket, electric control system, hydraulic system, and so on
- Main Technical Premeters
| Product Name | Fully Automatic Downspout Roll Forming Machine |
| Control System | PLC |
| Main Motor Power | 7.5KW |
| Roller Material | NO.45 Fine Steel With Quench Treatment, |
| Shaft Material | NO.45 Fine Steel |
| Thickness | 0.4-0.6mm |
| Forming Stations | 26 stands |
| Color | Customizable |
| Hydraulic Motor Power | 15KW |
| Warranty | 1 Year |
| Speed | 15m/min |
